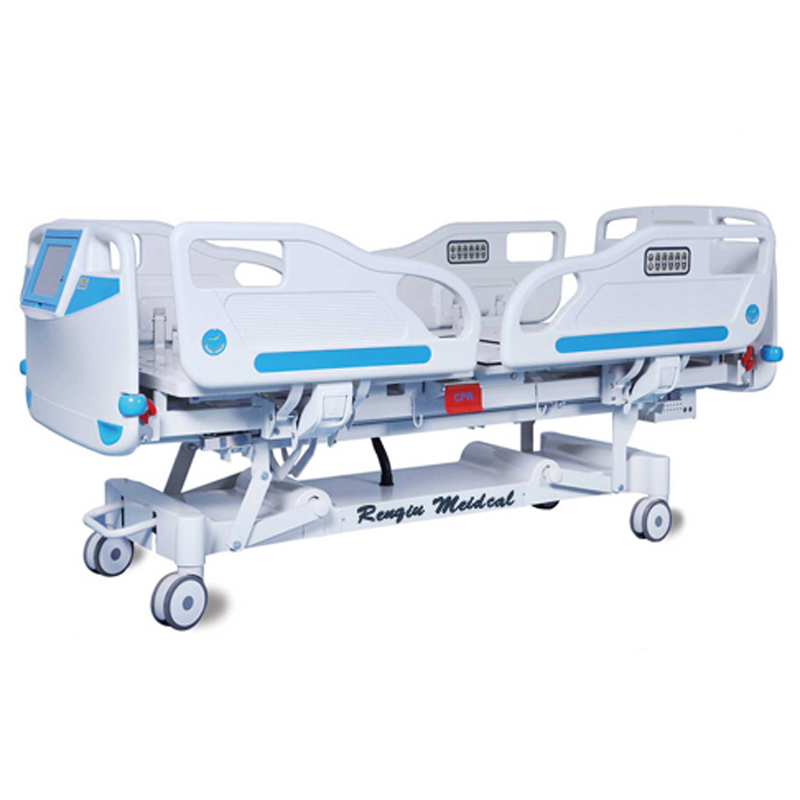

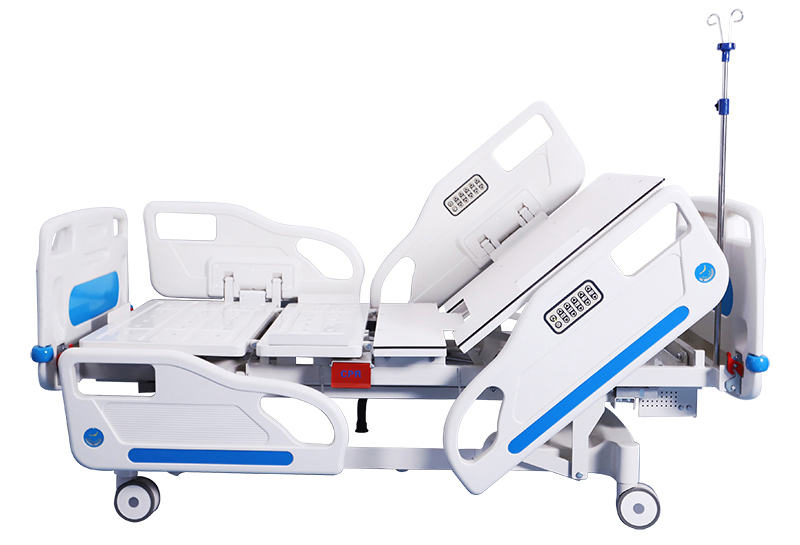

Multi-functional Electric Bed

Multi-function Electric Bed

Overall size:2350*1000*560-850MM

1.high quality ABS engineering plastic detachable head/foot board with control board for caregivers.

2.One-step punch forming bed platform by cold rolled steel plate, bed frame welded by mild profile steel.

3.Baked epoxy powder coating finishing.

4.Safe,reliable and tuck-away ABS guard rails with control board for patients.

5.Electric system adopts safe voltage motor with power storage function, which can create UPS.

6.Stable and noiseless central controlling brake castors with central controlling treadle.  (125mm Dia. castors)

7.Functions:

1) Back res

2) Leg rest

3) Back rest & Leg rest movement together

4) Height adjustable

5) Trendelenburg & reverse trendelenburg

6) left&right trendelenburg

7) TR KEY: rescue the patient into state of shock

8) Auto/Manual CPR function.

9) rescue function (highest to reach 1100MM)

10) chair position function

11) function for patient leaving bed easily

12) LED for weight scale indicator.

8.Input Voltage:(AC)220V/110V ,50HZ;  output voltage: (DC) 24V

9.Noise level :≤60 dB.

10. Loading capacity:250KGS.
